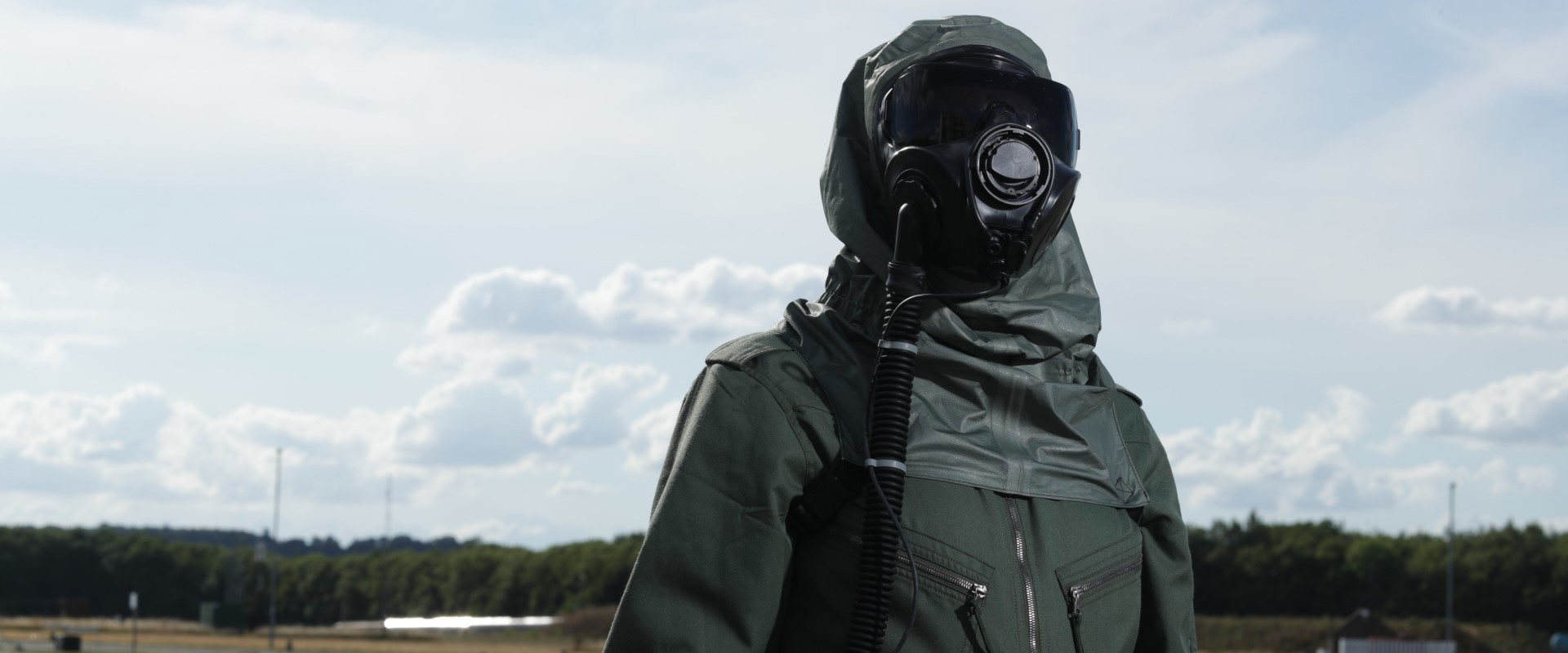

M69
The Aircrew Mask
M69
The Aircrew Mask
As the air purifying respirator (APR) for aircrew, the M69 has been specifically developed to meet the unique requirements of users who require CBRN protection at high altitudes.
Based on the proven M53 specialist mask platform, the M69 has been specifically developed to meet the unique requirements of aircrew wearers who require CBRN respiratory protection at all altitudes up to 40,000ft (12,000m).
The M69 sets a new level of performance and capability to meet the changing needs of today’s modern aircrew. Leveraging the core features of the M53 mask, the platform delivers the lowest cost of ownership of any fixed wing aircrew system.
This new generation of fixed wing aircrew mask from Avon Protection, compliments the widely used M50, M53 and M53A1 ground masks to allow for reduced logistical burden and training.
Suitable for:
- Military
Based on the proven M53 specialist mask platform, the M69 has been specifically developed to meet the unique requirements of aircrew wearers who require CBRN respiratory protection at all altitudes up to 40,000ft (12,000m).
The M69 sets a new level of performance and capability to meet the changing needs of today’s modern aircrew. Leveraging the core features of the M53 mask, the platform delivers the lowest cost of ownership of any fixed wing aircrew system.
This new generation of fixed wing aircrew mask from Avon Protection, compliments the widely used M50, M53 and M53A1 ground masks to allow for reduced logistical burden and training.
Features and Benefits
CBRN Protection
- C2A1 filter with additional post filter module. Traditional CBRN Air Purifying Respirator capabilities while on the ground and connected to the aircraft oxygen supply.
Pressure Breathing at Altitude
- When connected to a CRU-73/A or CRU-103 oxygen regulator, the M69 provides hypoxia prevention for standard flight operations as well as rapid decompressions. Hypoxia protection is seamless with CBRN protection and does not require any user intervention.
Integration
- Low profile butyl hose remote mounts filter.
- Compatible with most aircraft communication systems, voice amplifier and radio lead options.
- Integrates fully with combat uniform, helmets and ballistic vests.
Simple Operation
- Miniature compensation exhale valve allows mask use on ground and up to 40,000 ft (12,000m).
- Fail safe hydration system, compatible with canteens and bladders.
- Integrated valsalva allows wearer to equalize during sudden pressure changes.
- Soft elasticated harness allows for <9 second donning time.
Technical Specifications
| M69 Performance | |
|---|---|
| Mission Duration | Typical <12 hrs |
| Ceiling Height | 40,000ft (12,100 Meters) |
| Protection Factor | >6.667:1 |
| Rebreathed CO2 | <1% |
| Chemical Liquid Challenge | >12hrs against Mustard/Sarin/Soman/VX |
| Filtration | C2A1 |
| Materials Used | |
| Visor Material | Flexible Polyurethane |
| Facepiece Material | Chlorobutyl Silicone Blend |
| Size and Weight | |
| Weight w/Hose and Hood | 3.7lbs (1.68kg) |
| Facepiece Sizes | 4 (Large, Medium, Small and Extra Small) |
| Nosecup Sizes | 5 (Extra Large, Large, Medium, Small, Extra Small) |
| Field of View | |
| Visual FOV Score | 96% to NIOSH CBRN STD |
| Hydration | |
| Drinking Flow Rate | >200ml/min |
Resources and Downloads
Accessory Data Sheets
Filter Data Sheets
Product Literature
Technical Documents
Accessories
Related Products

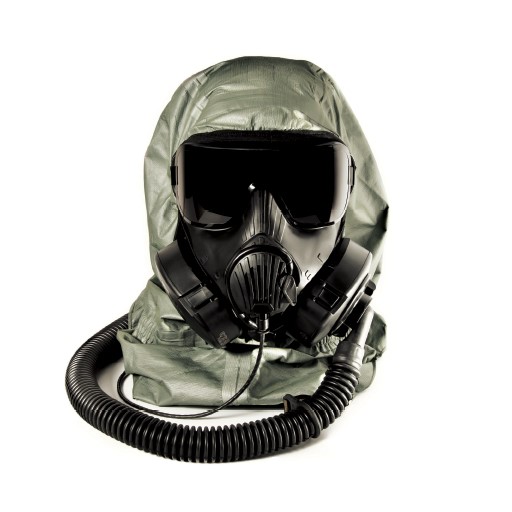

FM51
