NH15
Compact Escape Hood
NH15
Compact Escape Hood

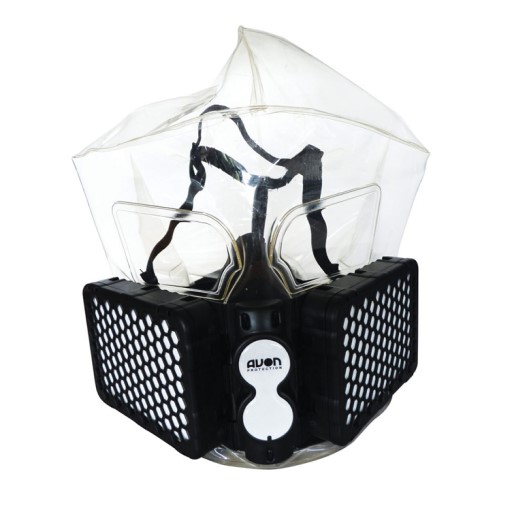

The Avon Protection NH15 CBRN Air Purifying Escape Respirator is the smallest and most compact escape hood on the market, approved to carry NIOSH and CE marking. Its low cost makes it ideal for police, emergency medical services and fire officers seeking immediate or emergency respiratory protection in a CBRN scenario.
The NH15 hood has a five year shelf life and provides a high level of respiratory, eye and face protection for a minimum of fifteen minutes. Made of clear material, the NH15 not only protects against all airborne CBRN threats but also protects the face from liquid agent splashes.
The clear material gives a non-threatening appearance, aids with recognition of the wearer and also allows for superior visual communication. Twin low-profile filters on a unique hinge system feature the latest filtration media which reduces breathing resistance and a front reflector makes it easier to identify colleagues in low light environments.
Suitable for:
- First Responders
- Military
- Prisons and Corrections
The NH15 hood has a five year shelf life and provides a high level of respiratory, eye and face protection for a minimum of fifteen minutes. Made of clear material, the NH15 not only protects against all airborne CBRN threats but also protects the face from liquid agent splashes.
The clear material gives a non-threatening appearance, aids with recognition of the wearer and also allows for superior visual communication. Twin low-profile filters on a unique hinge system feature the latest filtration media which reduces breathing resistance and a front reflector makes it easier to identify colleagues in low light environments.
Features and Benefits
Compact
- Low Profile Filters to reduce snagging
- Streamlined design
See and be Seen
- Clear range of vision
- Reflective label
Fit and Comfort
- Close fit filters
- Self-Adjusting Harness
- 3 sizes
Cost of Ownership
- No fit test requirements
- No replaceable parts
- No maintenance or inspections
Technical Specifications
| Protection Factor & Hood Performance | |
|---|---|
| Breathing Zone (Oronasal) | Greater than 2,000 |
| Head zone (Ocular) | Greater than 150 |
| Neck size ranger | 330-558mm (regular) |
| Donning time | Less than 30s |
| Re-breathing CO2 | Less than 2.0% |
| Breathing Resistance | |
| Inhalation at 85lpm | Less than 50 mm H20 |
| Exhalation at 85lpm | Less than 10 mm H20 |
| Barrier Performance (Tested at ECBC) | |
| GB | Greater than 30 minutes |
| HD | Greater than 30 minutes |
| Smartman Performance (Tested at ECBC) | |
| GB | Greater than 30 minutes |
| HD | Greater than 30 minutes |
| Filter Performance | P3/P100 (Less than 0.03%) |
| Particulate Penetration | P100 (Less than 0.03%) |
| Packaging | |
| Pack Size | 6" X 4" X 3.4" in (150 X 100 X 90 mm) |
| Packaging type | 4 layer foil barrier bag surrounded by reinforced nylon carrier |
| Weight (as carried) | 1 lb 7 oz (625g) |
| Packaged shelf life | 5 years when stored between 5oF and 105oF |
| User instructions | 3 language user guide supplied |
| Sizing | |
| Extra Small | 12 to 13 inches |
| Regular | 13 to 18 inches |
| Large | 18 to 22 inches |
| Training hoods are available on request | |
| Challenge Concentration (ppm) | Breakthrough Time (minutes) | |
|---|---|---|
| Hydrogen Sulfide | 500 | > 150 minutes |
| Ammonia | 1250 | > 20 minutes |
| Sulphur Dioxide | 750 | > 30 minutes |
| Cyclohexane | 1300 | > 35 minutes |
| Formaldehyde | 250 | > 45 minutes |
| Hydrogen Cyanide | 470 | > 45 minutes |
| Nitrogen Dioxide | 100 | > 45 minutes |
| Phosphine | 150 | > 45 minutes |
| Phosgene | 125 | > 45 minutes |
| Cyanogen Chloride | 150 | > 30 minutes |
NIOSH CBRN approved TC-14G-0302
PPE Directive 89/686/EEC for CE marking, Article 10 type-examination approval to BS8468-3.2:2009 type-1: Certificate No. CEC 40136 A2
