MP-PAPR
Multi-Position Powered Air Purifying Respirator
MP-PAPR
Multi-Position Powered Air Purifying Respirator

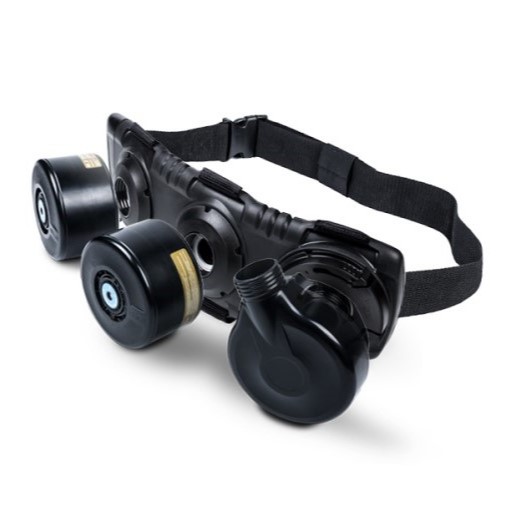

A departure from traditional rigid plastic construction systems, the Avon MP-PAPR is the world’s first flexible PAPR unit, constructed from the same field proven Chlorobutyl rubber, as used for the Avon 50 series masks range.
Avon Protection introduces a new generation of CBRN Powered Air Purifying Respirator, the Avon MP-PAPR™ system.
The Avon MP-PAPR module delivers a compact and easily integrated PAPR unit providing cooling, lower user burden and reduced pulmonary stress.
The unique shape and construction allow the wearer to mount the PAPR in multiple ways, maximizing integration while delivering higher protection levels and improved well-being.
A complete set of certifications allows the user to add Avon MP-PAPR to existing fielded systems such as the 50 Series APRs, convert into a combination PAPR (Avon CS-PAPR) or revert back to an Avon EZAir configuration.
Suitable for:
- First Responders
- Military
- Special Forces
Avon Protection introduces a new generation of CBRN Powered Air Purifying Respirator, the Avon MP-PAPR™ system.
The Avon MP-PAPR module delivers a compact and easily integrated PAPR unit providing cooling, lower user burden and reduced pulmonary stress.
The unique shape and construction allow the wearer to mount the PAPR in multiple ways, maximizing integration while delivering higher protection levels and improved well-being.
A complete set of certifications allows the user to add Avon MP-PAPR to existing fielded systems such as the 50 Series APRs, convert into a combination PAPR (Avon CS-PAPR) or revert back to an Avon EZAir configuration.
Features and Benefits
Increased operational time
- Multiple long duration battery packs
- Constant flow rate reduces inhalation resistance
- Hot swap battery for rapid exchange
Optimized Integration
- Ergonomically back mounted carrier system with integrated hydration option
- Direct MOLLE mount to ballistic vests or other equipment
- S-Shape hose with crush proof technology delivers superior integration
Intelligent Control Systems
- Automatic flow control preserves battery life
- Low flow and battery alarm alert
- Automatic dual speed function
Novel Material Technologies
- Unique one size lightweight and flexible hose
- Dual wall construction hose which is crush proof
Modular Construction
- Remote power switch for simple operation at the mask
- Combination hose for use with supplied air cylinders
Technical Specifications
| Unit Size | 420mm L (16.5") x 115mm H (4.5") x 140mm W (5.5") |
| Unit Weight (No battery or filter) | 0.92 Kg (2.02 lbs) |
| Unit Weight (No Filter (6xCR123) | 1.2 Kg (2.60 lbs) |
| Flow Rate | 120 lpm controlled flow |
| Operational Noise @ 120 lpm | < 55 dBa |
| Run time |
CR123, Li-Ion battery 4+ hours (filter clogged) Li-Ion Recharable battery 8+ hours (filter clogged) |
| Operational Temperature | -20°C to 52°C (-4°F to 123°F) |
| Protection Factor PAPR mode | 10,000 (PAPR On), 2,000 (PAPR Off) |
| Alarms | Low Battery (can be silenced), restricted flow, high resistance |
| Construction | CBRN Hardened Butyl and Noryl |
| Operation | Smart integrated power button. Remote power button on hose (optional) |
| Interface with APR | Crush Proof hose with close fit 40mm (STANAG) APR connection, one size fits all |
| EMI Shielded | MIL-HDBK-235 |
| Intrinsically Safe | No |
Type-examination approval: PPE Regulation 2016/425/EU - Module B: Certificate CE 684847
MP-PAPR certified in back mount position with PAPR Back Harness only
NIOSH Approved CBRN PAPR Statement on Standard and Title 42 CFR84
TC-14G-0347 with C50
TC-14G-0348 with FM54
TC-14G-0349 with FM53
MP-PAPR certified in back mount position with PAPR Back Harness only
Resources and Downloads
Filter Data Sheets
Product Literature
Technical Documents
