ST50
The SCBA for Corrections
ST50
The SCBA for Corrections

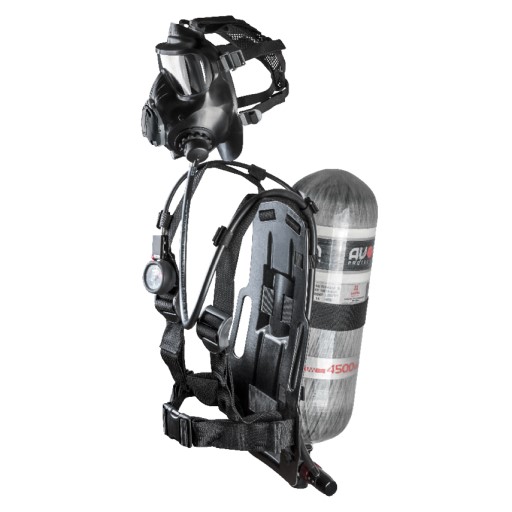

The ST50 SCBA by Avon Protection System was developed as a result of extensive field research, evaluation and voice of the customer.
The lightweight ST50 is a NIOSH approved, positive pressure, simple to operate, competitively priced self-contained breathing apparatus specifically designed to meet the unique and demanding requirements of Correctional facilities and Plant security. The ST50 deploys a modified, field proven PC50+ face piece that provides high performance, extreme wearer comfort, unobstructed vision and excellent communication. The small footprint, rugged compact demand valve (CDV) delivers high flow rates to the mask while the ergonomically designed back frame and harness assembly provides a comfortable and secure fit to the operator. The ST50 can accommodate 2216 psi or 4500 psi 30, 45 or 60 minute carbon cylinders incorporating a quick release cylinder band allowing for easy exchange.
By design, the ST50 is very simple to don, operate, deploy and maintain while in parallel robust enough to withstand the punishment and extreme operational requirements of Correctional Officers and Plant Security personnel. Realizing the daily budget challenges experienced by all, the ST50 SCBA has the lowest cost of ownership within the industry and is backed by a best-in-class warranty and service support program.
Suitable for:
- Prisons and Corrections
- First Responders
The lightweight ST50 is a NIOSH approved, positive pressure, simple to operate, competitively priced self-contained breathing apparatus specifically designed to meet the unique and demanding requirements of Correctional facilities and Plant security. The ST50 deploys a modified, field proven PC50+ face piece that provides high performance, extreme wearer comfort, unobstructed vision and excellent communication. The small footprint, rugged compact demand valve (CDV) delivers high flow rates to the mask while the ergonomically designed back frame and harness assembly provides a comfortable and secure fit to the operator. The ST50 can accommodate 2216 psi or 4500 psi 30, 45 or 60 minute carbon cylinders incorporating a quick release cylinder band allowing for easy exchange.
By design, the ST50 is very simple to don, operate, deploy and maintain while in parallel robust enough to withstand the punishment and extreme operational requirements of Correctional Officers and Plant Security personnel. Realizing the daily budget challenges experienced by all, the ST50 SCBA has the lowest cost of ownership within the industry and is backed by a best-in-class warranty and service support program.
Features and Benefits
Comfort
- 3 face piece sizes for improved fit
- Chlorobutyl rubber and silicone blend mask
- Six point, easy to adjust head harness
- Lightweight, comfortable backframe
Air Management
- Low inhalation resistance
- Heat build-up minimized
- Low-re-breathed carbon dioxide
- Downward exhalation valve cover
SCBA
- Whistle & gauge
- Positive pressure SCBA
- Excellent integration w/ standard PPE ensembles & external communication options
Field of View
- Panoramic single lens visor
- Optically correct visor
- Scratch Resistant
Technical Specifications
| Protection Performance | |
|---|---|
| Mask Protection Factor | 2500 |
| Weight (excluding filter) | 550 grams (1.2 lbs) |
| SCBA Protection Factor | 10000 |
| Weight of SCBA (excluding mask & cylinder) | 4536 grams (10 lbs) |
| Donning Time | Within 8 seconds |
| Interface with PPE | Integrates with operational clothing, personal issued items and riot helmets |
| Inhalation Resistance without Filter | |
| 30 l/min | 0.5 mbar |
| 90 l/min | 1.5 mbar |
| 160 l/min | 3.5 mbar |
| Exhalation Resistance | |
| 85 l/m (with CTF12 filter) | 1.9 mbar |
| Field of View | |
| Visual Field Score | > 95 |
| Sizes | |
| Small | Accomodates 95% of the female/male population |
| Medium | |
| Large | |
The Avon Protection ST50 SCBA carries a NIOSH Industrial Approval under the provisions of 42 CFR 84 TC-13F in a variety of cylinder and facepiece size combinations.
TC-13F-0868 30-MINUTE 2216 PSIG
TC-13F-0869 30-MINUTE 4500 PSIG
TC-13F-0870 45-MINUTE 4500 PSIG
TC-13F-0871 60-MINUTE 4500 PSIG
